The Coy In Vivo Hypoxic Cabinet System is the only system of its type that is a hermetically sealed chamber and allows continuous control of oxygen. This hypoxic chamber allows animals to live at reduced or elevated O2 levels. The system features the ability to change the O2 levels between multiple set points in increments of 0.1%. Users need only to supply a gas source for nitrogen and oxygen. The System features an advance controller and sensor to precisely control your needs. Cabinet comes complete with fittings and pressure relief valve to make operation and set up easy. Due to the wide variety of protocols on InVivo hypoxia studies Coy offers a complete line of options to ensure your animal care needs are met:
- Animal filtration system (option) — Long-term studies or high numbers of animals will require this filtration system to remove gaseous waste
- Dynamic O2 cycling (upgrade) — For studies requiring cycling O2 levels for intermittent hypoxia, Coy offers a factory-installed option to ramp and cycle oxygen levels based on preset protocols in the O2 control system
- Added capacity for animal filtration — Additional filters to enhance the filtration system and adjust for the number of animals while easing maintenance time for lab personnel
- Heaters — Internal heaters may be added if they are needed, available for Models 30 and 60

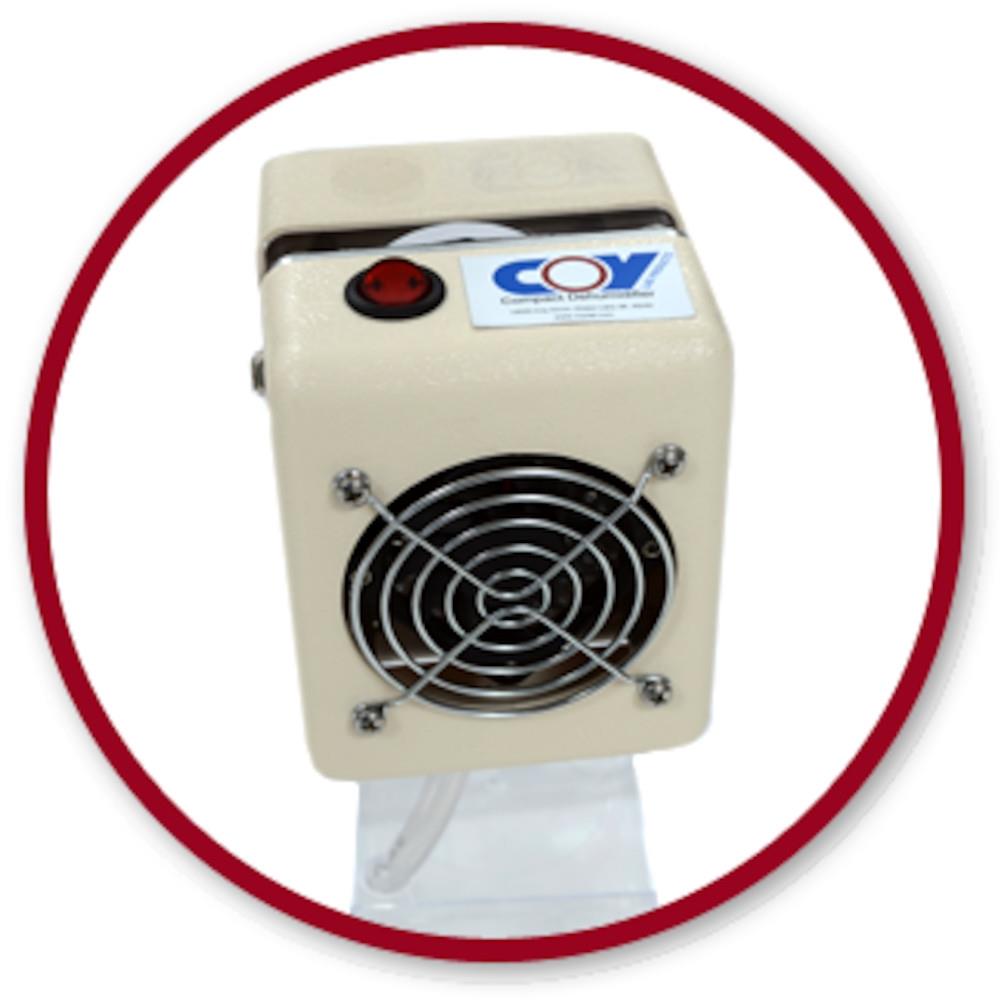

- Compact dehumidifier — Easy-to-maintain unit provides a way to remove moisture without using a desiccant
- Recirculating atmosphere filtration system — System filters the box atmosphere and controls contamination through a standard HEPA filter
All O2 Control InVivo Cabinets are supplied with the following:
- Pressure relief valve
- Two sensor ports
- Circulation fan
- Gas Inlet
- Optional pullout shelf for Model 30 unit
- O2 control range from 1-100%; factory calibrated for 0-20.9% (field calibration required)
- Adjustable leveling pads
